  1. iOS Game SDK

Native iOS Game Integration Guide

PreviousHTML5 Turn-based GameNextUnity - iOS Integration Guide

Last updated 2 years ago

This doc introduces the integration steps for native iOS games.

Refer to our demo for some references

Download Necessary Depedencies

Use the shell script from our

-- Debug

sh downloadLibs.sh

-- Release

sh downloadReleaseLibs.sh

It will download all the required dependencies for CelerGameSDK

Project setup for compiling

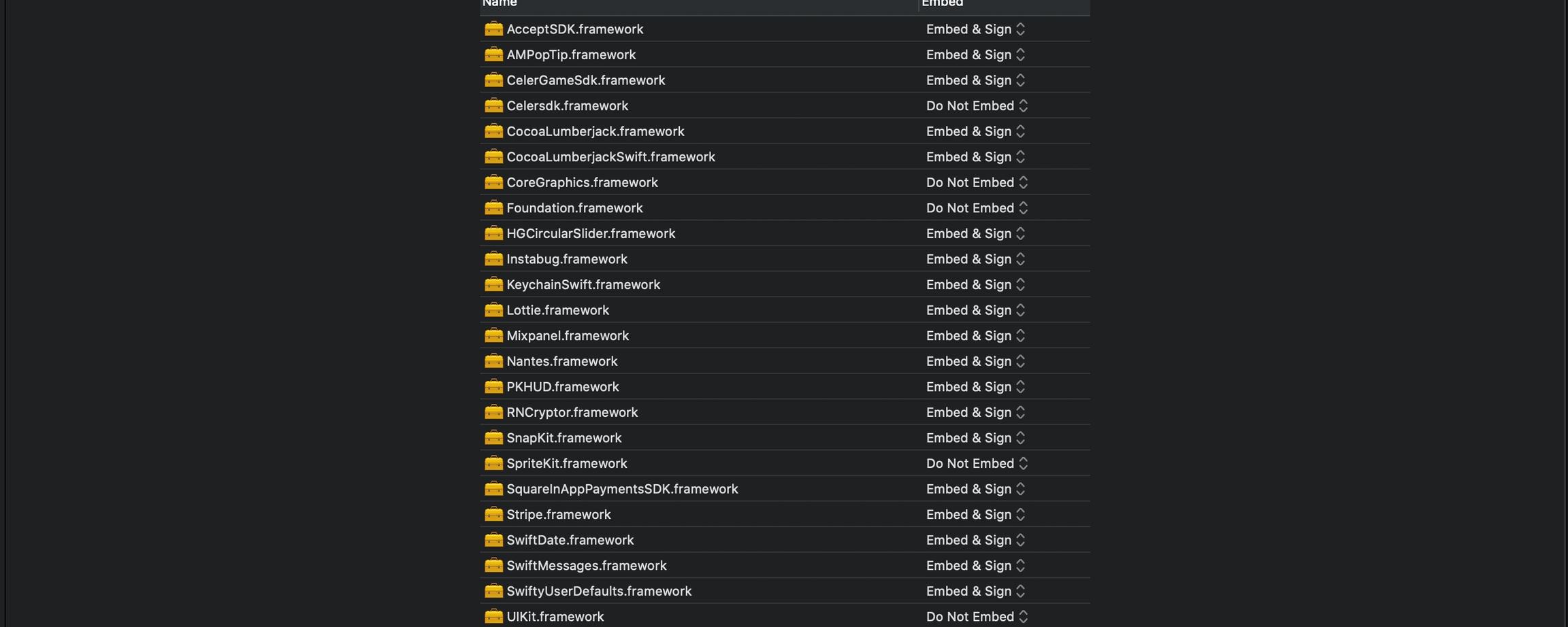

  • Embed everything from the dependencies folder

embedLibs
  • Change Celersdk.framework to Do not embed

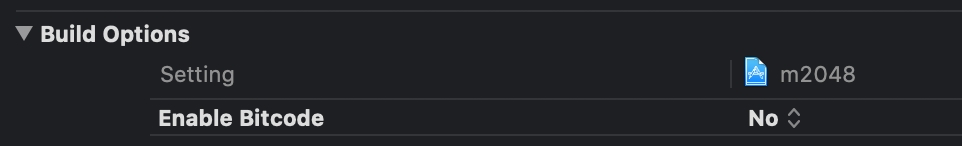

  • Disable bitcode(Due to one of the embeded library, might change in the future)

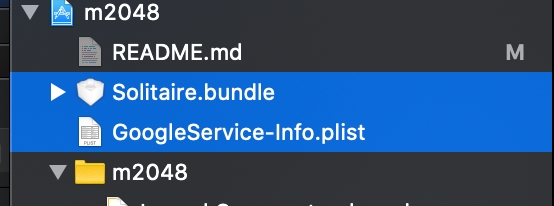

  • Add Your Resource Bundle(Optional, but will speed up your launch process)

  • Add Your GoogleService-Info.plist(Push Notification)

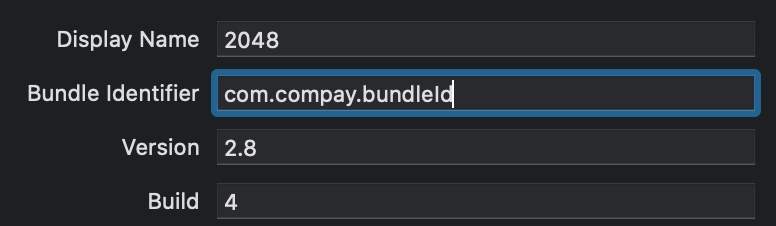

  • Register your BundleId with our portal

  • Add necessary permissions

Prerequisites

--

  • Push Certificates

Integrate with our sdk

Import Framework

#import <CelerGameSdk/CelerGameSdk.h>

Init SDK

[CelerGame initializeSdk];

-- Try not to call this function at app's start or start of your first view, do this when you have passed your initial loading screen, and preferably being trigger by user action, delay one runloop if you'll have to present sdk UI at launch

Register Celer Game SDK Life Cycle

[CelerGame setSdkDelegate:self];

CelerSdkDelegate

- (void)matchSeedGenerated:(double)seed

- (void)onMatchJoin:(nonnull id)gameObject

- (void)onReady

- (void)onResult

matchSeedGenerated

This callback provides a double type seed in order to generate a random level fair to the players, seed will range from 0 ~ 1

onMatchJoin:gameObject

This callback provides necessary infomation about the match in a json package, display info as fit

gameObject

For Objective C, gameObject will be a dictionary formatted as below:

{
   "matchId":"01b085ed-b928-4476-a6ff-924c18fbf0d8",
   "players":[
      {
         "id":"sand.siesta",
         "index":1,
         "name":""
      },
      {
         "id":"pear.penury",
         "index":2,
         "name":""
      }
   ],
   "sharedRandomSeed":0.99951094382847394,
   "shouldLaunchTutorial":true,
   "difficultyLevel":1,
   "currentPlayer":{
      "id":"pear.penury",
      "index":0,
      "name":""
   }
}

onReady

Start your game here

onResult

Do some clean up work

CelerGameSdk method

[[CelerGame shared] sendWithCallback:CelerGameStateOnLoaded];

[[CelerGame shared] sendWithCommand:CelerGameCommandHideInterface];

[[CelerGame shared] sendWithCommand:CelerGameCommandShowInterface];

[[CelerGame shared] submitWithScore:_score];

sendWithCallback:CelerGameStateOnLoaded

call this function when game level has finished loading

sendWithCommand:CelerGameCommandHideInterface

hide CelerGameSDK UI

sendWithCommand:CelerGameCommandShowInterface

show CelerGameSDK UI

submitWithScore:int

submit Score

Notes

  • To run this demo, run download script in the root directory

  • An universal framework that supports simulator and devices will be provided, it will run on a debug environment

  • A release framework only supports devices will be provided for appstore, it will run on release configuration

  • Minimuim sdk requirement is iOS 11

linkCelerSdk
disableBitCode
resourceBundle
bundleId

Necessary Assets

For a pure OC project target before ios 12.2, please enable Always Embed Swift Standard Libraries settings []

grphicAssetsIntegration.pdf
https://stackoverflow.com/questions/55364816/with-swift-5-and-ios-12-2-should-i-change-always-embed-swift-standard-librarie
Demo Repo (2048)
Demo Repo
